Hi Luciana and All,

Just too be sure everyone is on the same page.  I am working with the
CDD 2.3.0 found here:
http://bazaar.launchpad.net/~cdd-dev/cdd/trunk/view/head:/CDD-2.3.0.xmt

Use BZR to get a copy if you need.  bzr branch lp:cdd
I think it is easier for people to see the model this way even though
in reality the mindmap file is a reproduction of the EMF model.

At this point I am only going to address the concerns about Slots.  I
will wait for other comments before getting into other issues.

I'll call this:  "Slots and the Magic of Namespaces"

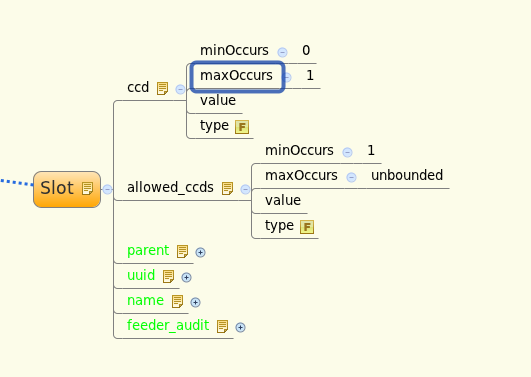

I have attached a small image of the Slots class for reference.  Using
the actual mindmap is preferred though.

Notice that Slots has two attributes other than the ones inherited
from Locatable. the 'ccd' attribute is for the actual selected CCD
from the list of 'allowed_ccds'.  The descriptions here need to be
expanded to say Fully Qualified Domain Name (FQDN) it is not meant to
be just the CCD IDs.  This is because what will happen is that you can
have CCDs from many different servers.  Even though CCD IDs are UUIDs
I still believe it is beneficial to carry the FQDN in case some people
do not register their CCD in the HKCR.net  network.

When CCD instance data is created then the FQDN becomes the namespace
for whatever data is collected in the referenced CCD.

There is a short explanation of namespaces here:
http://www.w3schools.com/xml/xml_namespaces.asp

Further info is here:
http://www.w3.org/TR/REC-xml-names/#sec-namespaces

So in the XML it might look like this (simplified):

<?xml version="1.0" encoding="UTF-8"?>

<ccd
  xmlns:ccd1="http://www.hkcr.net/ccd/3hios3rf8l8r1a13pccevqevc9.xsd";
  xmlns:ccd2="http://www.hkcr.net/ccd/3o8f564em78rbuf1pn15m3odf4.xsd"/>

  <ccd1:attr_x>Some data</ccd1:attr_x>
  <ccd2:attr_x>Some different data.</ccd2:attr_x>

... lots more meta-data and instance data ...

</ccd>

So through labelling the instance attributes with ccd1 or ccd2 then
the tooling can tell which CCD (XML schema)  that data is required to
conform to.  Therefore if you had a CCD with 10 Slots in it each set
of attributes from each CCD would have a different label.  This is how
XML tools work.  Of course you don't have to use ccd1 and ccd2.  You
could use aaa and xxx as labels or you could use the whole CCD ID. But
the network people would shoot you for the extra payload.  :->

I hope this helps a bit.

Regards,
Tim
