[Jussi Isokangas <jussi.t.isokangas@xxxxxxxxxxxxxx>]

Hi,
Trick worked, thank you. Now I can change value trough ssh-tunnel from host
machine. But still platform gives dropped ack-message over 0.9m bandwidth.
I have used advanced settings for configuring. Please check my changed
values.

Additionally platform is unstable all the time (can't find each other).

SAT with empty, eth0 (192.168.18.15/24)
ST   with empty, eth0 (192.168.18.1/24) and eth1 (192.168.19.1/24)
GW with empty, eth0 (192.168.18.42/24)  and eth1  (192.168.42.1/24)
ports:3141, 5926, 5358
Other values are too default.

ping from ST to GW works (192.168.42.3) (192.168.42.1)
ping from GW to ST works  (192.168.18.1) (192.168.19.3) (192.168.19.1)
ping from SAT to GW works(192.168.42.1) (192.168.42.3)
ping from SAT to ST works (192.168.18.1) not work (192.168.19.3)
(192.168.19.1)

I have used firewall options ip forwarding =1. And now ufw is even disable
on every machine.

Before emulator I have configured my interfaces:
SAT eth0 192.168.10.2
ST   eth0 192.168.10.3, eth1 for Workstations 192.168.20.1
GW  eth0 192.168.10.1, eth1 for workstations 192.168.50.1 and eth2 NAT


Sorry for this basic questions, but I have not so much experiences :(


Br. Jussi


On 14 February 2014 10:45, Julien BERNARD <jbernard@xxxxxxxxxxxxxxxxxxx>wrote:

> Hi Jussi,
>
>  It would be easier to work with opensand If I can see all menus for
>> config./Ican't see bottom of the manager window. I'm using vm on virtualbox
>> 4.3.6 and I can't drag the running program between workspaces like on host
>> machine/. I have tried lot of tricks. Has anyone solution for that?
>>
>>  Try with a higher screen resolution or connect on the manager from your
> main computer with SSH and X11 forwarding.
>
> Regards,
>
> --
> Julien BERNARD
>
>

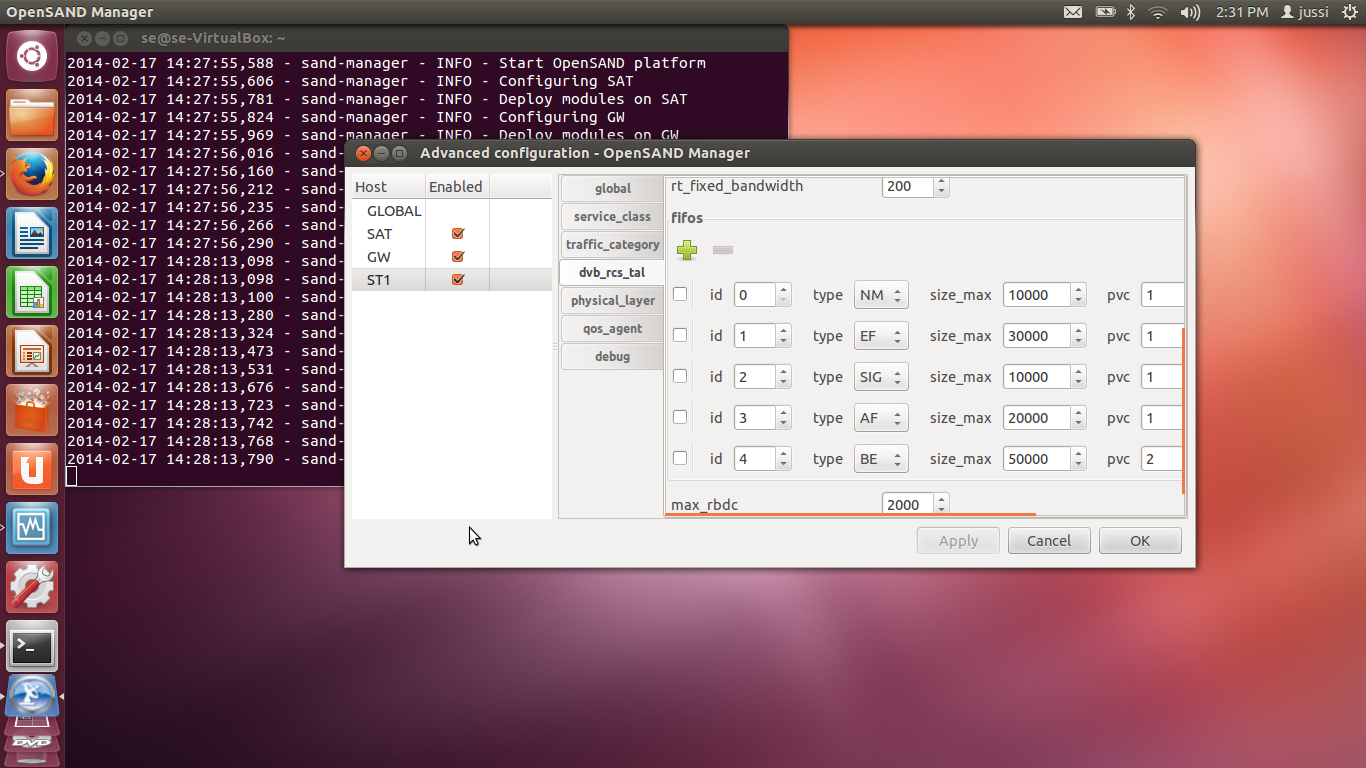

Attachment: Screenshot from 2014-02-17 14:29:50.png
Description: PNG image

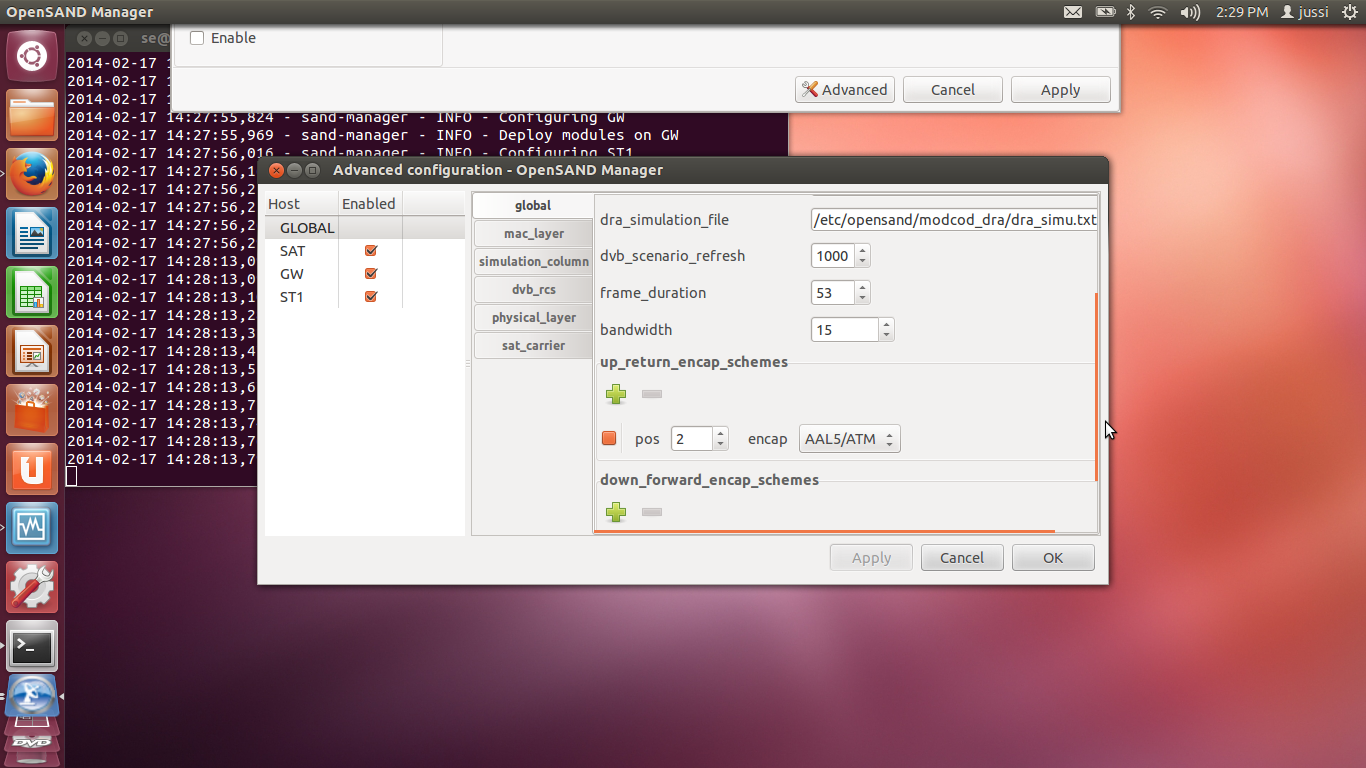

Attachment: Screenshot from 2014-02-17 14:31:14.png
Description: PNG image
